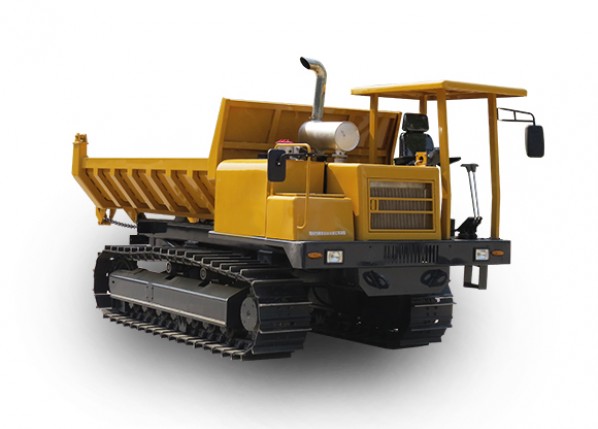

10T Steel crawler dumper

10T Steel crawler dumper

Product Categories:Steel crawler dumper
Browsing:   Date:2018-03-22

Return

Description

ZY-10T Track transporter technical parameters
1. Technical parameters
Engine model                                         6BTA5.9-C240 Cummins6BTA5.9-C240
Rated power                                             176kw(HP)
Rated revolution                                        2200r/min
Working weight                                              18Ton
 Rated carrying capacity                          10Ton
Max. Walking speed              7km/h
Max. Flux                                              2*180 L/min
System hydraulic pressure                         31.5MPa
Overall dimension(L*W*H)                     6800*2500*2800mm
Width of the track shoe                             600mm
product description: 1.Engine:
Adopt Cummins diesel engine, excellent performance, low fuel consumption, low noise, large power reserves, long stroke.
2.Oil tube:
Choose high-pressure rubber pipe, which suits all the bad working environment, anti-quake, anti-loose, stand fire.
3.Hydraulic working system:
Taking advanced of foreign advanced technology, it can reduce wobble with buffer function, and the machine service life can be extend.
4.Traveling system:
South Korea Doosan motors and oil pump.
5.Structure:
Choose the domestic manganese steel with excellent quality, improving the strength of structure in a high level, which guarantee the safety of traveling and construction.
6.Surface treatment:
Derusting with large size shot blast machine, to change welding stress.
7.Surface spray coating:
Ant rusting paint, finishing paint.
